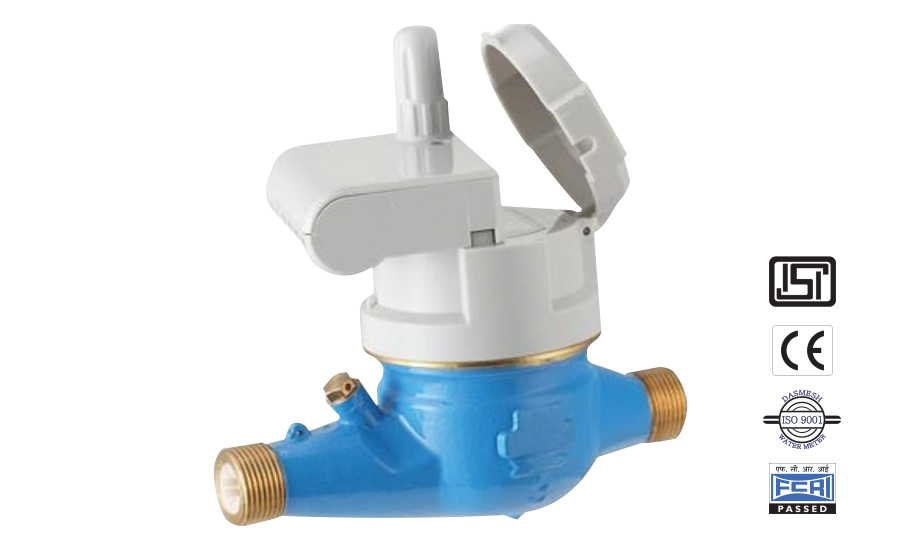

A.M.R. Type Water Meters (Witeless Type)
Model : DAMR
Smart water meter system as a whole complies requirements for recording of bidirectional flow of water.

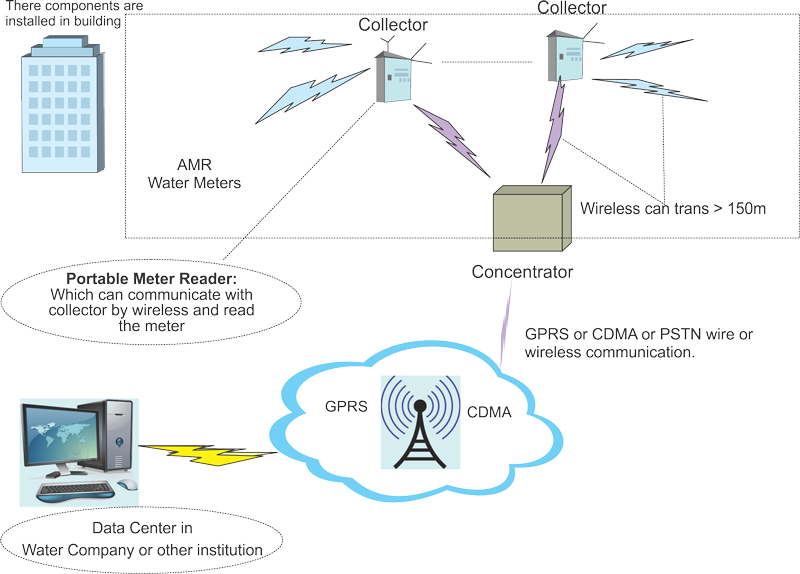

The prerequisite for the integration of water meters, into modern remote reading systems is the ability of the meters to communicate. AMR-technology by Dasmesh water meter provides modular structured solutions for smart metering systems via suitable interfaces, adapted to individual customer requirements. Our portfolio includes both wired bus systems and wireless radio solutions, as well as the associated software for activation and for taking readings with the systems.
Salient Features
- Dry Dial Magnetic drive
- Antimagnetic type, protected against external magnetic tampering
- Vacuum-sealed register, frost resistant, keeps clear reading for long time
- Available for cold water 0 ~ 50°C
- Register can be rotated in any direction for convenient reading
- High Accuracy, the meters conform to ISO-4064 Standard
- Brass body can be painted or powdered coated
- Operation RF, GSM/GPRS, prepaid, LORA wireless
- Battery operated (Life 10 Years)
Working Condition
- Water temperature ≤ 45°C
- Water pressure ≤ 1MPa
- Pressure Loss < 0.1Pa
- Maximum pressure - 16bar
Accuracy
- From minimum flow-rate (Qmin) inclusive, to transitional flow-rate (Qt) Exclusive +-5%
- From transitional flow-rate (Qt) Inclusive, to overload flow rate (Qmax) Exclusive +- 2%
